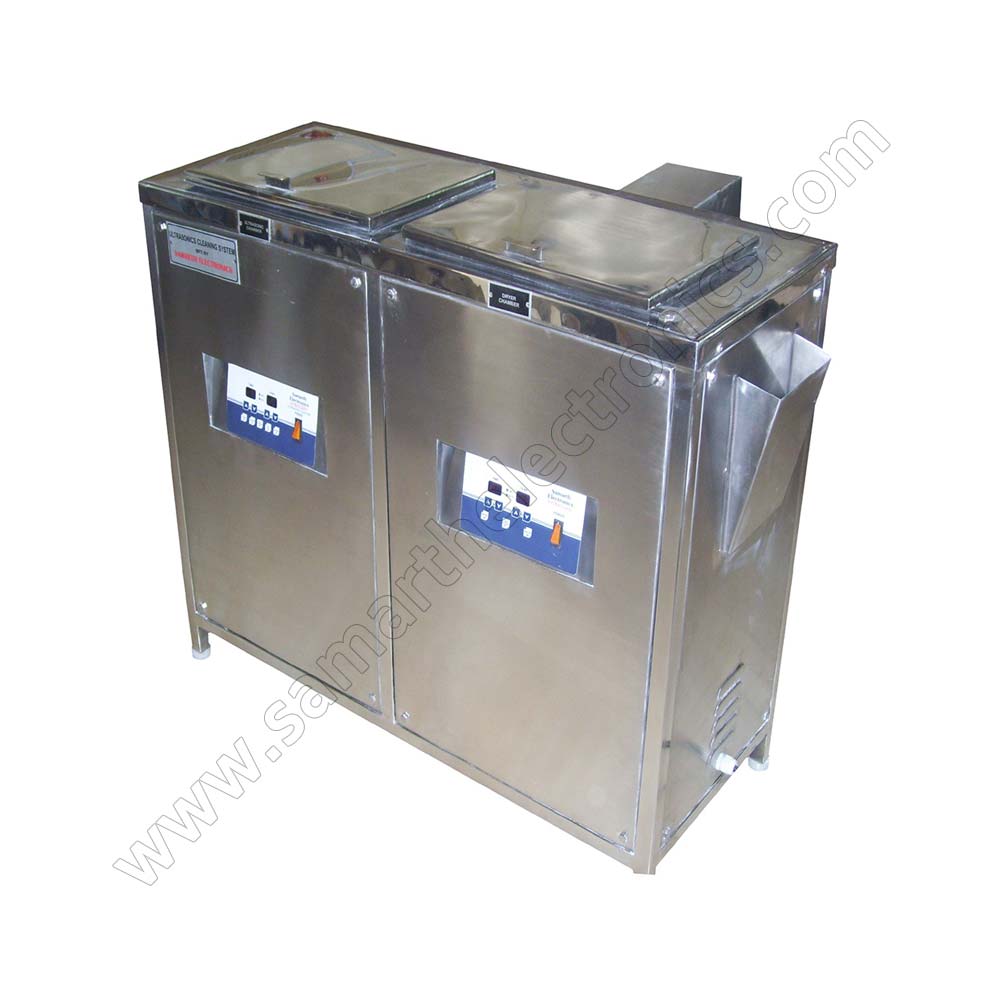

We specialize in the manufacturing and supplying of the best quality Medical Ultrasonic Cleaning system used for Surgical Instruments & Implants cleaning & is controlled by a microprocessor unit. Attributing to its longer functional life and Best Cleaning process, the whole range of the Cleaners offered by us is highly popular among the client-base we have garnered so far. The offered product is further known for its perfect finish.
We are specialized in designing & developing the customized system as per required in Multispeciality CSSD Dept like 2 / 3 Stage Cleaning system
» Customized Systems
» Longer functional life
» Perfect finish
» Resistant to corrosion
Specification
Stage 1: Ultrasonic Cleaning Chamber| Model | SM-200 US 2 Stage |
|---|---|
| NO.OF CHAMBERS | ONE |
| TANK SIZE | 24″ X 9″ X 6″ (L X W X H ) |
| BASKET SIZE | 23″ X 8″ X 6″ ( L X W X H ) |
| CHAMBER MATERIAL | SS 304 (16 SWG) with mirror finish & round corner |
| TANK ENCLOSER | SS 304 with Pipe frame & Door Panel ( 18 SWG) with matt finish |
| BASKET | SS 304 ( Wire Mesh Basket) |
| ULTRASONIC POWER | 400 WATT ( Avg ) & 800 W ( Peak) |
| POWER INPUT | 230 VAC |
| TIMER | Digital Display with 0-99 min settable. |
| TEMP. CONTROLLER | Digital temperature controller with setting max-60°C |
| AUTO DEGASSING | Preset for 5 Min. |
| PSP | Pulse sweep power for uniform distribution of U/S energy. |
| ULTRASONIC FREQUENCY | 33OR kHz ± 3 Khz |
| TRANSDUCERS | Imported make PZT type bonded at the bottom of the tank with weld bond technique. |
| ULTRASONIC GENERATOR | Advanced latest MOSFET based SMPS |
| INLET & OVERFLOW | ½” BSP Inlet & ½” Overflow With Barrel nipple connection. |
| DRAIN | ½” BSP threaded valve provided for drainage. |
| ACCESSORIES | SS 304 lid, SS 304 Basket, Drain valve & User-friendly Operation manual. |
| SOLVENT | Aqua/Solvent Based |
Stage 2: Dryer Chamber
| NO.OF CHAMBERS | ONE |
|---|---|
| TANK SIZE | 24″ X 9″ X 6″ (L X W X H ) |
| BASKET SIZE | 23″ X 8″ X 6″ ( L X W X H ) |
| CHAMBER MATERIAL | SS 304 (16 SWG) with mirror finish & round corner |
| TANK ENCLOSER | SS 304 with Pipe frame & Door Panel ( 18 SWG) with matt finish |
| BASKET | SS 304 ( Wire Mesh Basket) |
| POWER INPUT | 230 VAC |
| TIMER | Digital Display with 0-99 min settable. |
| TEMP. CONTROLLER | Digital temperature controller with setting max-80°C |
| AIR BLOWER | A Centrifugal blower will be provided. |
| HEATER | 1000 W for efficient heating |
| INSULATION | Proper insulation for avoiding heat loss. |
| DRAIN | ½” BSP threaded valve provided for drainage. |
| ACCESSORIES | SS 304 lid, SS 304 Basket, Drain valve & User-friendly Operation manual. |
