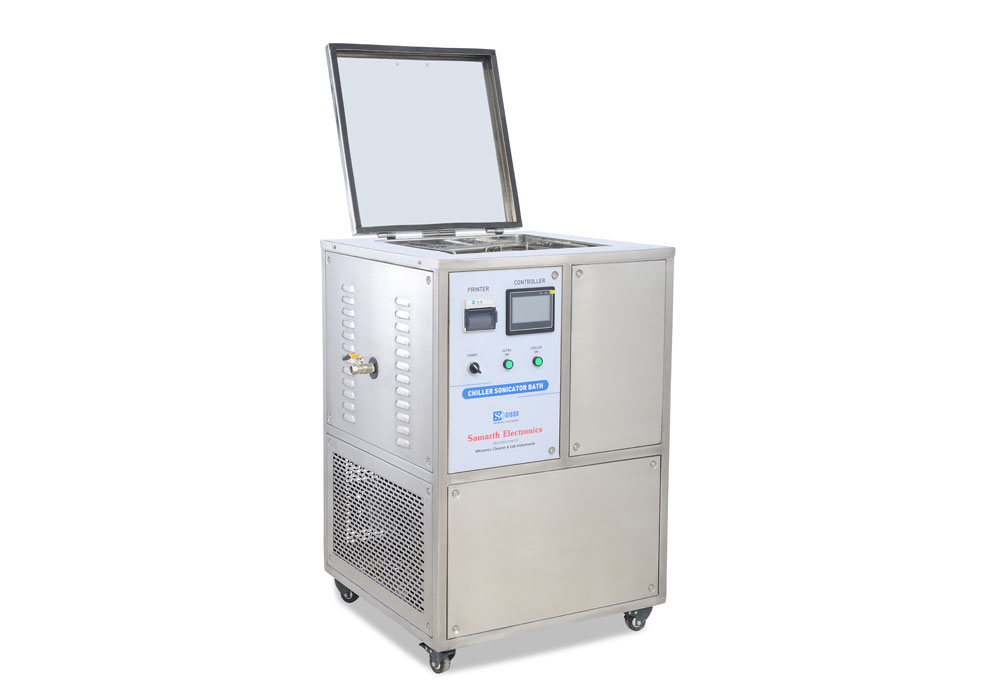

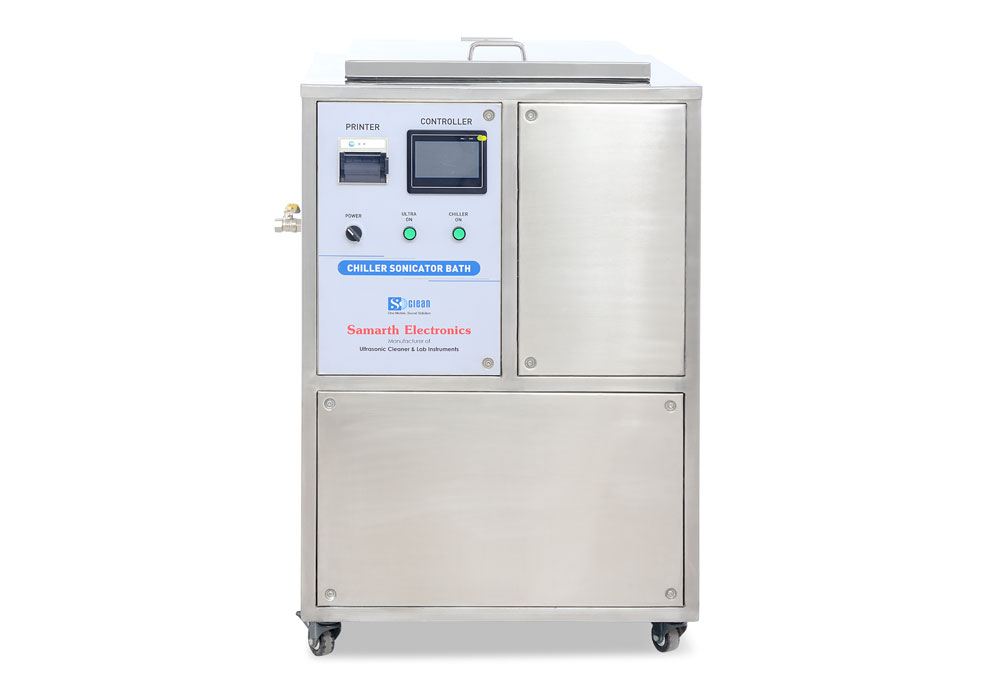

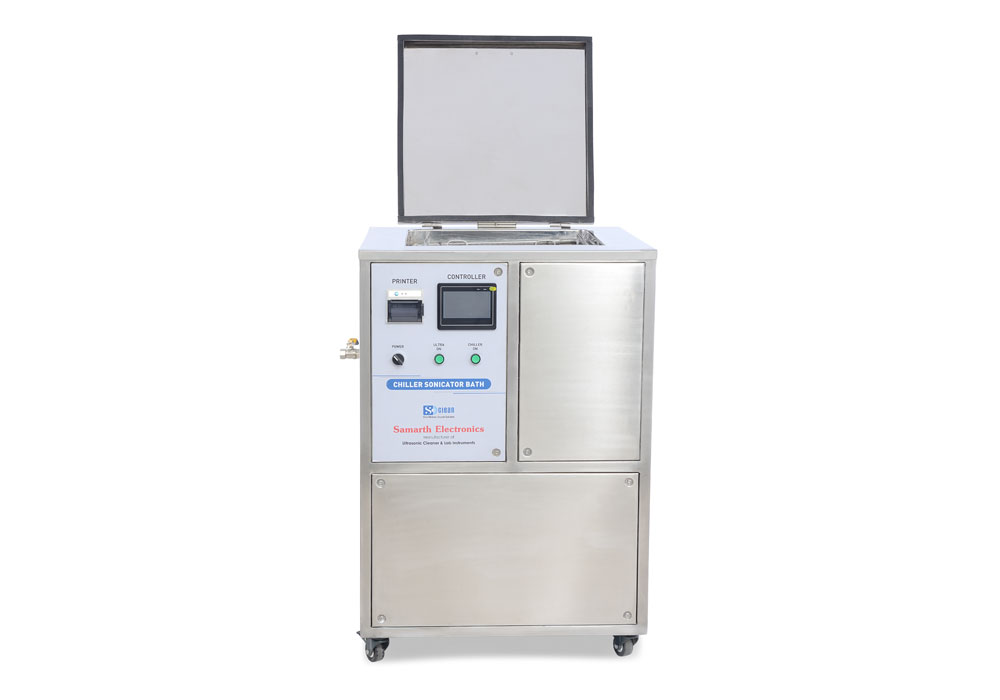

Ultrasonic Inbuilt Chiller Sonicator With PLC Manufacturers and Suppliers
We specialize in the manufacturing and supplying of best quality Table top Sonicator as well as floor top model with Inbuilt Chiller Unit that is controlled by a microprocessor unit. Attributing to its longer functional life and low noise operation, the whole range of the sonicators offered by us is highly popular among the client-base we have garnered so far. The offered product is further known for its perfect finish.
» Longer functional life
» Perfect finish
» Resistant to corrosion
Specification
Model | SM-300 CHUS |
---|---|
NO.OF CHAMBERS | ONE |
TANK SIZE | 15″ X 15″ X 8″ ( L X W X H ) |
ENCLOSER SIZE | 23″ X 23″ X 36″ ( L X W X H ) |
ENCLOSURE | SS 304 With Pipe frames & ( 20 SWG THICKNESS ) with Matt Finish Panels with Castor wheels |
TANK | SS 304 (16 SWG THICKNESS) with round corners & mirror finish. |
TANK CAPACITY | 30 LITER’S |
ULTRASONIC POWER | 500 WATT |
PLC & HMI User Friendly HMI Screen with detail operation setting & Controlled through PLC. | |
TEMP. CONTROLLER | Digital temperature controller with setting range 10°C to room temperature max 30°C. |
Timer Timer with 0-99 min settable. | |
Printer | Digital Printer. |
PSP | Pulse sweep power for uniform distribution of U/S energy |
AUTO DEGASSING | Preset for 5 Min. |
POWER INPUT | 230VAC |
U/S FREQUENCY | 33 OR 40 kHz ± 3 Khz |
TRANSDUCERS | Imported make PZT type bonded at the bottom side of the tank with weld bond technique. |
U/S GENERATOR | Advanced latest MOSFET / IGBT based SMPS |
DRAIN | ½” Drain with Ball valve will be provided. |
CASTOR WHEELS | PU COATED Castor wheels for easy movement of the system in the lab. |
ACCESSORIES | SS 304 lid, SS 304 Basket, Drain valve, Castor Wheels & User-friendly Operation manual. |
SOLVENT | Aqua/Solvent Based |
DOCUMENTS | IQ/OQ/PQ Reports as per STD format with Test & Calibration report with Traceability report. |
