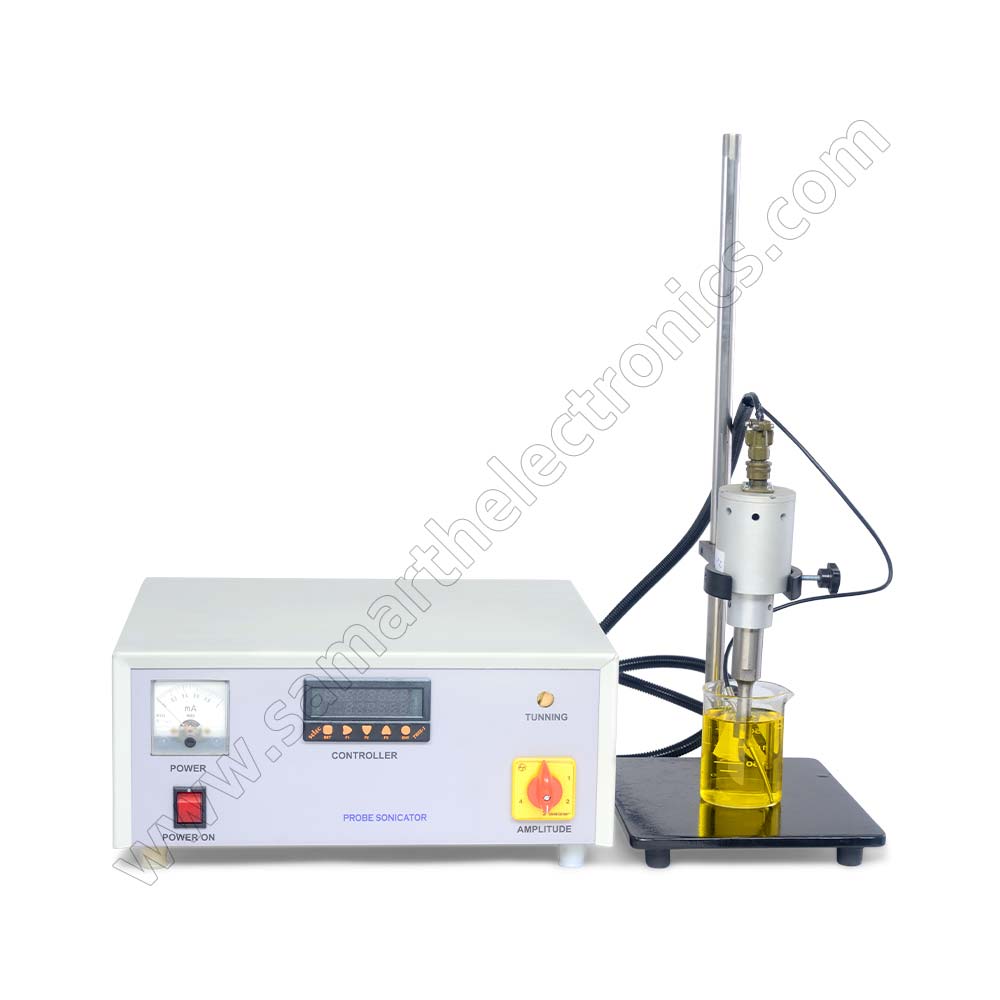

Probe Sonicator
- Home
- Products
- Probe Sonicator
Probe Sonicator Manufacturer And Supplier
“We specialize in the manufacturing and supplying of the best quality Probe Sonicator with 3 different variants LED / LCD / LCD with a Touch screen that is controlled by a microprocessor unit. Attributing to its longer functional life and we do also design & develop low noise Systems, the Complete range of the Probe sonicators offered by us is highly popular among the client-base we have garnered so far. The offered product is further known for its perfect finish.
Key Features
- Longer functional life
- Perfect finish
- Resistant to corrosion
| Model | SM 100US |
|---|---|
| NO. OF CHAMBERS | ONE |
| TANK SIZE | 12″ x 9″ x 6″ (L x W x H) |
| ENCLOSER SIZE | 15″ x 12.4″ x 15.4″ (L x W x H) |
| TANK CAPACITY | 10 LITERS |
| ULTRASONIC POWER | 250 WATT |
| HEATER POWER | 500 WATT |
| ULTRASONIC FREQUENCY | 33 OR 40 kHz ± 3 kHz |
| TIMER | Digital Display with 0–99 min settable |
| TEMP. CONTROLLER | Digital temperature controller with setting max-60°C |
| AUTO DEGASSING | Preset for 5 Min. |
| PSP | Pulse sweep power for uniform distribution of U/S energy |
| POWER INPUT | 230VAC |
| TRANSDUCERS | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ULTRASONIC GENERATOR | Advanced latest MOSFET based SMPS |
| ACCESSORIES | SS 304 lid, SS 304 Basket, Drain valve & User-friendly Operation manual |
| SOLVENT | Aqua/Solvent Based |
| MODEL | UNIT | SM120PS | SM150PS | SM250PS | SM500PS | SM700PS | SM750PS |
|---|---|---|---|---|---|---|---|
| Ultrasonic Power | Watt | 120 | 150 | 250 | 500 | 700 | 750 |
| Ultrasonic Frequency | Khz | 20 | 20/30/40 | 20/30/40 | 20/30/40 | 30 | 20 |
| Probe/Sonotrode | mm | 3 | 6 | 12 | 20 | 25 | 25 |
| Sample Volume | ml | 1–100 | 1–150 | 10–250 | 25–500 | 50–900 | 50–1000 |
| Display | LED / LCD / TOUCH SCREEN | ||||||
| Programmable | |||||||
| .LED .LCD .LCD With Touch Screen |
Set 10 or more programs 10 Nos. of program Set & Stored 10 Nos. of program Set & Stored |
||||||
| Controller | Microcontroller Based and Programmable. | ||||||
| ON/OFF Pulse | Seconds | 1 TO 99 | |||||
| Programmable Timer | Minutes | 1 TO 99 | |||||
| Operating Voltage | V | AC 220-230v & 50/60Hz, Single Phase | |||||
| Overload Protection | ALSO AVAILABLE WITH HEATER AND DIGITAL TEMP. TEMPERATURE CONTROLLER | ||||||
| .Power Protection .High Temperature Protection .High Voltage Protection |
Yes Yes Yes |
||||||
| Probe / Sonotrode Material | Titanium Alloys (Ti-6Al-4V) | ||||||
| Variable Amplitude | % | A0-25-50-75-100 | |||||
| Sealed Converter | (PZT) Energy Converter | ||||||
| Tuning | Manual Tuning & Frequency Control | ||||||
| Continuous Ultrasonic | Minutes | Continues ON for 1 to 999 | |||||
| Temperature Indicator | °C | 0°C to 150°C | |||||
| Temperature Controller | PID Controller & PT 100 Sensor | ||||||
| Standard Accessories | |||||||
| .Ultrasonic Generator .Ultrasonic Cable .Sensor (Pt100) .Sealed Convertor .Probe .Wrench Set |
Yes Yes Yes Yes Yes Yes |
||||||
| Warranty | One Year (Labor & Parts) | ||||||
| Optional Accessories | |||||||
| .Sound Enclosure .Laboratory Jack .Support Stand |
Yes Yes Yes |
||||||
